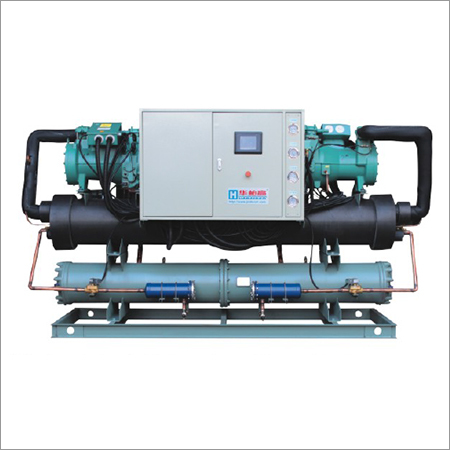

Water Cooled Screw Chiller

Water Cooled Screw Chiller
Water Cooled Screw Chiller
Product Code : 04
Brand Name : FJACRE
Product Description

Water Cooled Screw Chiller

Owing to our years of domain experience, we are reckoned as an eminent manufacturer and supplier of standard quality Water Cooled Screw Chiller. This technically advanced Water Cooled Screw Chiller is equipped with compressor,  double screw rod, threshold energy quantity controller, oil separating unit, microcomputer controlled unit and evaporator. The condenser part of this screw chiller has been fabricated by using finest grade copper tube coils and aluminum fins. Its advanced design is useful for reducing power consumption rate of this chiller. Its evaporator is designed with copper tube coils and thermal insulation layers.

Key Features:

  • Finest grade copper, aluminum and alloy steel  have been used to develop this chiller.
  • Well built structure and long working life are some special features of this screw chiller.
  • It consumes less energy for its functioning.
  • This chilling equipment can be obtained in different specifications.

Technical Specification :

Type

Single Compressor

Parameter / Model

H-60SLG-A

H-80SLG-A

H-100SLG-A

H-120SLG-A

H-140SLG-A

H-160SLG-A

H-180SLG-A

H-220SLG-A

H-250SLG-A

H-280SLG-A

H-320SLG-A

Capacity

KW

190

230

296

349

418

466

524

640

723

814

931

Kcal/h

163400

200380

254560

300410

359480

400760

450640

550400

621780

70040

800660

Power Supply

50Hz

3P-380V-50Hz

Power Input

KW

39.1

48.2

61

71.7

86.2

95.9

107.8

131.7

147.3

165.2

188.8

Energy Efficiency Retio

COP

4.23

4.21

4.11

4.23

4.22

4.23

4.23

4.23

4.24

4.24

4.24

Refrigerating Circuit

1

1

1

1

1

1

1

1

1

1

1

Refrigerant Stream flow control

Thermal Expansion Valve

Refrigerant

R22

Compressor

Type

Semi-hermetic Double- Ecrew

?

Y-

Capacity Control

0-25%-50%-75%-100%

Condenser

Type

Efficient External Thread Copper Tube, Shell and Tube type

Water flow

39.4

48.4

61.4

72.3

86.7

96.6

108.7

132.7

149.7

168.4

192.6

Water Pressure Loss

55

55

58

58

58

61

61

65

65

66

67

Water Pump Standard

DN80

DN100

DN100

DN125

DN125

DN125

DN150

DN150

DN150

DN150

DN200

Evaporator

Type

Efficient External Thread Copper Tube, Shell and Tube type

Water Flow

36.3

44.5

56.6

66.7

79.9

89

100.1

122.3

138.1

155.5

177.9

Water Pressure Loss

52

55

58

58

58

58

61

61

62

64

64

Water Pump standard

DN80

DN100

DN100

DN125

DN125

DN125

DN150

DN150

DN150

DN150

DN200

Safety Protection

High-low pressure switch exhaust over-heat protection safety value, antifreezing protection, water flow protection

Electric Leakage Protection, Compressor Over-heat contact breaker phase Protector; oil level protector

Weight

Kg

980

1250

1590

1720

2040

2460

2780

3200

3850

4100

4480

Size

Length

mm

2300

2300

2800

3200

3200

3600

3600

4000

4000

4100

4100


Width

mm

1100

1100

1250

1250

1360

1360

1360

1480

1480

1500

1500


Height

mm

1420

1420

1530

1620

1620

1760

1760

1820

1820

1900

1900

Noise

db

72

72

73

74

74

75

75

77

77

78

81

Double Compressor
Technical Specification :

Type

Double Compressor

Parameter / Model

H-120SLG-A

H-160SLG-A

H-200SLG-A

H-240SLG-A

H-280SLG-A

H-320SLG-A

H-340SLG-A

H-440SLG-A

H-500SLG-A

H-540SLG-A

H-640SLG-A

Capacity

KW

380

466

592

689

836

932

1048

1280

1446

1628

1862

Kcal/h

326800

400760

509120

600280

718960

801520

901280

1100800

1243560

1400080

1601320

Power Supply

50Hz

3P-380V-50Hz

Power Input

KW

78.2

80.2

122

143.4

172.4

191.8

215.6

26.4

294.6

33.4

377.6

Energy Efficiency Retio

COP

4.23

4.21

4.11

4.23

4.22

4.23

4.23

4.23

4.24

4.24

4.24

Refrigerating Circuit

2

2

2

2

2

2

2

2

2

2

2

Refrigerant Stream flow control

Thermal Expansion Valve

Refrigerant

R22

Compressor

Type

Semi-hermetic Double- Screw

?

Y-

Capacity Control

0-25%-50%-75%-100%

Condenser

Type

Efficient External Thread Copper Tube, Shell and Tube type

Water flow

78.8

93.9

122.8

144.7

173.4

193.3

217.3

285.4

299.3

336.8

385.1

Water Pressure Loss

58

58

63

63

65

65

67

67

70

70

72

Water Pump Standard

DN100

DN80x2

DN100x2

DN100

DN100x2

DN125x2

DN150x2

DN150x2

DN150x2

DN150x2

DN200x2

Evaporator

Type

Efficient External Thread Copper Tube, Shell and Tube type

Water Flow

72.6

89

113.1

133.4

159.7

178.1

200.2

244.6

276.3

311.1

355.8

Water Pressure Loss

50

58

63

63

65

65

65

87

68

68

70

Water Pump standard

DN100

DN1250

DN150

DN150

DN150

DN200

DN200

DN200

DN250

DN250

DN250

Safety Protection

High-low pressure switch exhaust over-heat protection safety value, antifreezing protection, water flow protection

Electric Leakage Protection, Compressor Over-heat contact breaker phase Protector; oil level protector

Weight

Kg

2050

2050

2510

2820

3350

4040

4560

5250

6320

6730

7250

Size

Length

mm

4200

4200

4400

4400

4600

4600

4600

4800

4800

4800

4800


Width

mm

1350

1350

1480

1480

1560

1560

1620

1620

1680

1680

1680


Height

mm

1660

1660

1750

1990

1990

2100

2100

2230

2230

2230

2230

Noise

db

74

73

73

74

74

75

75

77

77

78

80
