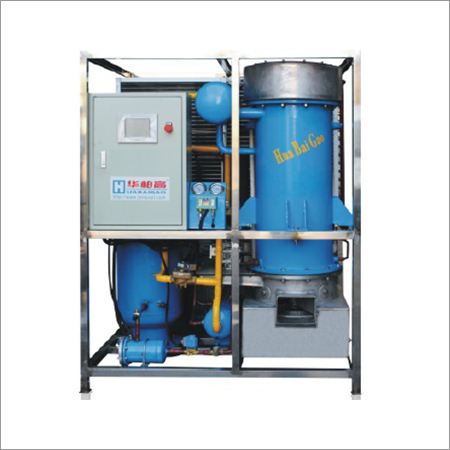

Tube Ice Machine

Tube Ice Machine
Tube Ice Machine
Product Code : 01
Brand Name : FJACRE
Product Description

Tube Ice Machine

Located in Mumbai, we are reckoned as a prestigious manufacturer and supplier of advanced quality Tube Ice Machine. The offered machine is used for making ice tubes from fresh water by using ammonia and ozone friendly refrigerants. The working system of this automatically operated machine depends on PLC controlled mechanism. All the components of this machine has been fabricated by using 304 grade stainless steel with rust proof finishing. The application of this Tube Ice Machine can be noticed in mine cooling industry, seafood preservation unit, hotels and restaurants, food and aquatic products preservation stores.

Key Features:

  • The emergency stop button and reset  switch of this ice machine help to avoid hazardous conditions during its operation.
  • The one-key concept based design of this machine has been designed by keeping the convenience of its operator in mind.
  • Low maintenance cost and hygienic ice processing method are some of its special features.
  • This product is suitable for inland and vessel deployment purpose.
Application Areas:
  • Port ice factory
  • coffee shops,bars,hotels
  • supermarkets,convenience stores,food preservation places
  • aquatic products,restaurants and other commercial ice establishments
  • preservation in the process of logistics

Shell Ice Characteristics :

  • Shape of  Ice is hollow, transparent color, environmental health
  • No Sharp edges and corners, will not damage the surface of the cold collection
  • Ice length 25~40mm, diameter: 22mm, Phi Phi 29mm, With 38mm.
  • It Can be Customized on Customer Demand
  • It suitable for storage and transportation
  • Do not have to deal with the ice.

Perfect design:

  • All the parts and fitting of the equipment are arranged in a systematic manner. The structure is compactly designed which are very organized.
  • Minimal maintenance required
  • Safety, health or sanitation factors are considered
  • "Bai Hua" is a high quality ice machine ice tube equipment
  • High standards of hygiene is maintained
  • Stainless steel SUS304 or stainless steel SUS316L and PE material are used
  • Health standards are maintained to meet quality standards of international certification
  • Performance is stable and reliable
  • Ice machine is equipped with a water flow rate, low water level, high pressure and low pressure of compressor and oil pressure.
  • Fully automatic control
  • Tube ice machine equipped with PLC automatic control which makes it safe and reliable to use
Technical Parameters:
Ice machine parameters
Model HGF08 HGF10 HGF15 HGF20
Nominal ice production (ton /24 hours) 8 10 15 20
refrigerating capacity(KW) 52.5 71.5 107 143
Compressor power(HP) 30 50 70 100
Compressor brand Pitzer or customer demand
Power of reducer(KW) 0.75 1.1 2.2 2.2
Pump power( KW) 0.75 1.5 1.5 1.5
Ice water consumption(Kg) 354 506 759 1012
Condenser type Air-cooled condenser or water cooled condenser Water cooled condenser or evaporative condenser
total power(KW) 24.5 37.5 56.5 79
net weight(KG) 2350 3500 4200 5680
Size length * width * height(mm) 1650*1450*2500 2000*1650*3000 2000*1800*3000 3500*1800*3500

Important Details.

Power Requirement International standard full electric power supply
Ambient Temperature 33℃
Supply water temperature 20 C (water requirements for pure water, can increase water filtration and water treatment equipment to improve water quality)
Pipe ice specifications Diameter of 22, 29, 35, 38, 41 of the standard tube ice outside diameter, the inner hole is 3mm~15mm
Limiting condition Ambient temperature of 5 C ~40 C, water supply temperature of 5 C ~30 C (variable condition range)
Refrigerant R22  R404A  R507A  R717
Compressor Pitzer Carrier Grasso Mycom (or customers to choose)
Material selection of ice machine evaporator
Icing surface of evaporator 1.     SUS304
1.     SUS316L
1.     Q345chrome-faced
